CEDARAPIDS/STANDARD HAVENS

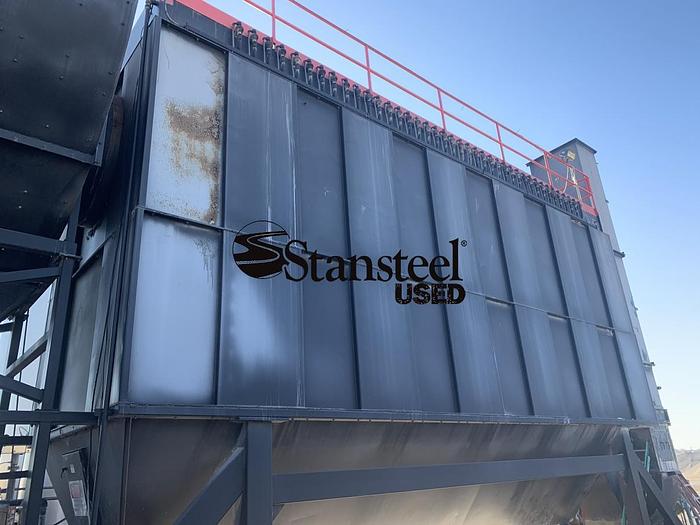

Cedarapids/Standard Havens® Skid-Mounted Baghouse

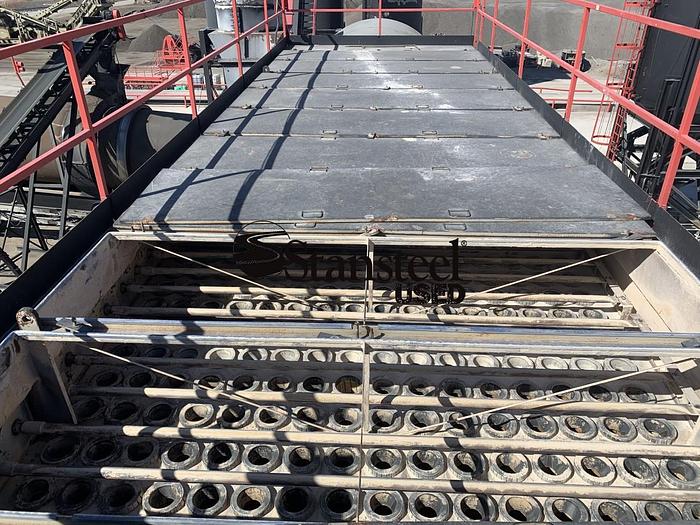

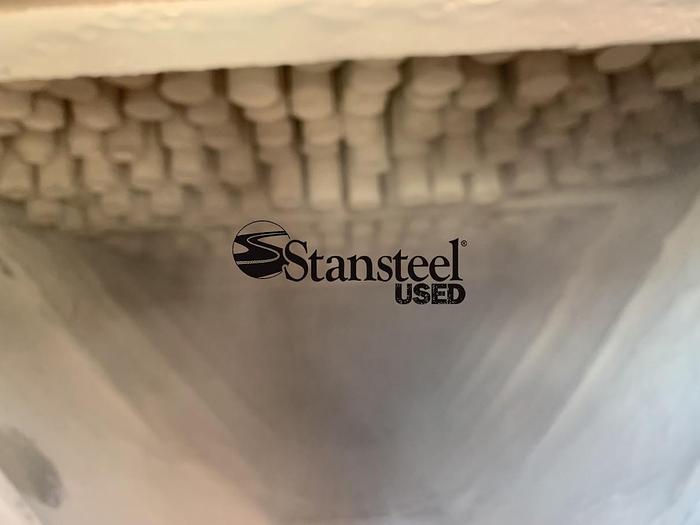

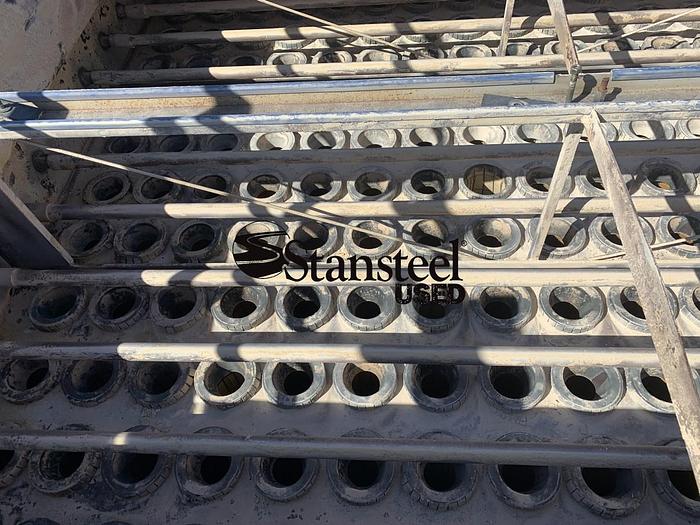

Pulsejet Style with 6 1/4” dia x 14’-6” long top load bags.

Nominal 84,000 ACFM with 640 bags @ ~15,190 sq. ft. cloth

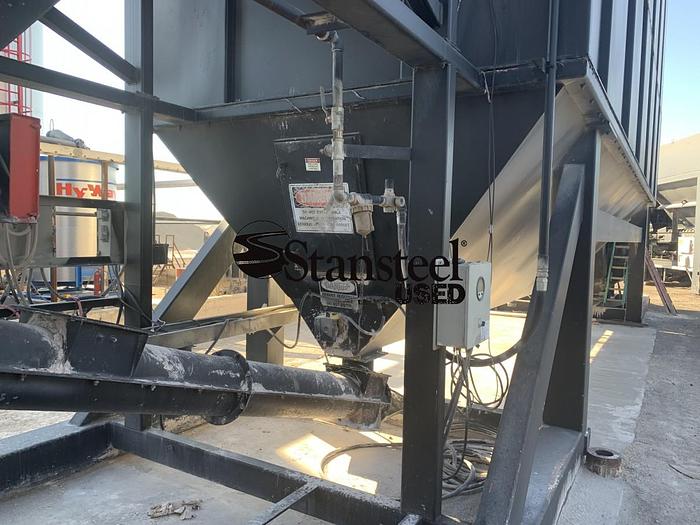

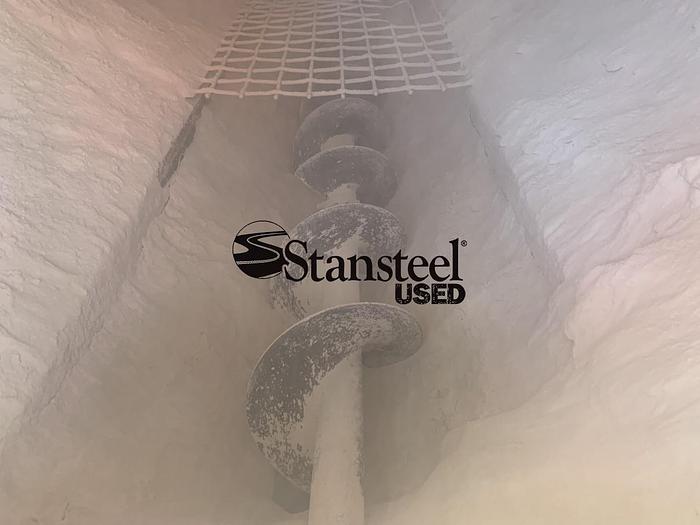

Hopper mounted Dust Removal Auger.

Dust Transfer Auger to Transfer Dust to the Drum Auger.

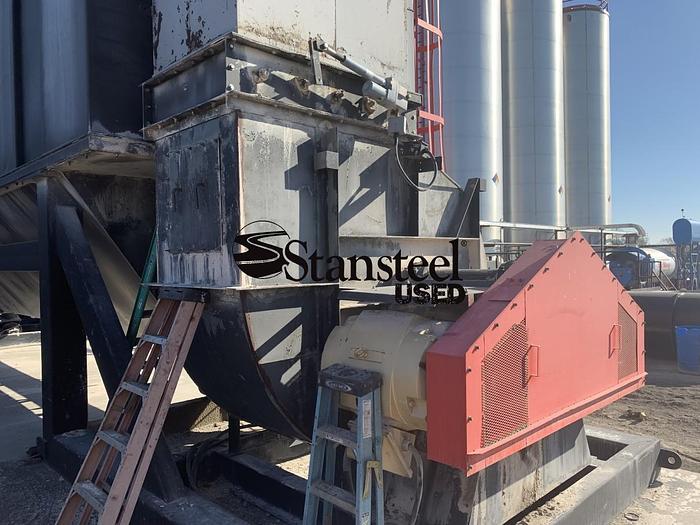

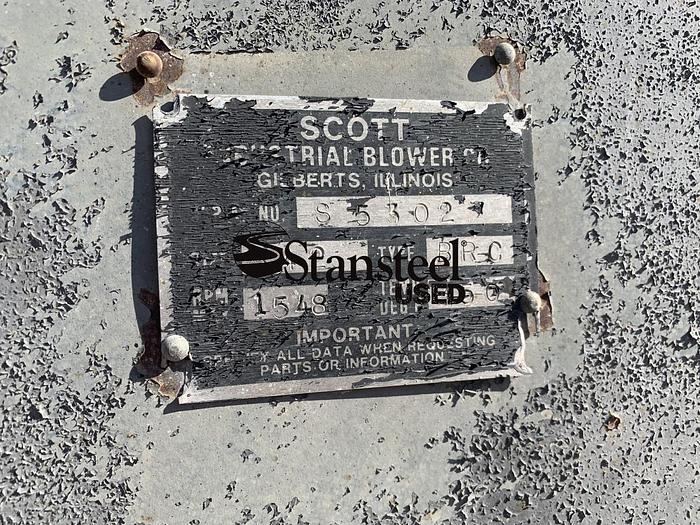

Scott Industrial Model #S-5302, Size 542 Exhaust Fan with (2) 200HP Drive Motors

Exhaust Stack with Damper and Remote Control are included.

Integral Cyclone Primary with Airlock.

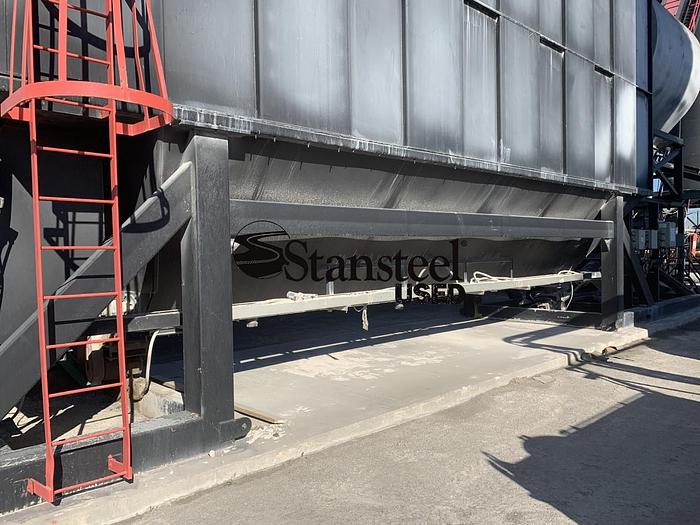

Full Perimeter Handrails and Caged Access Ladder to the top.

All Interconnecting Ductwork Included
