CMI 500TPH Counterflow Drum Plant

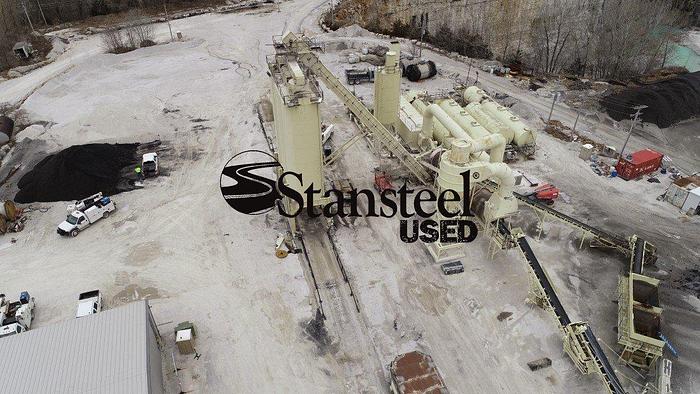

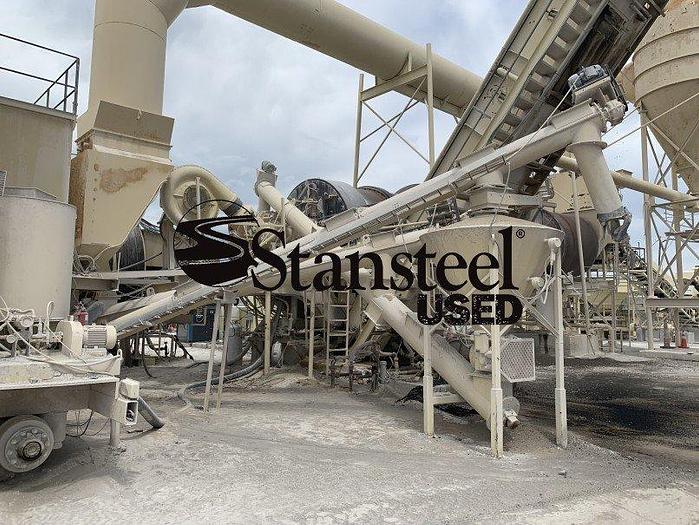

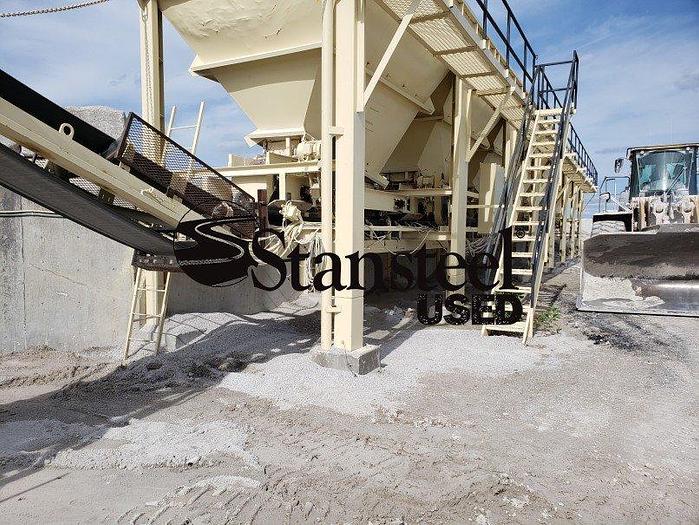

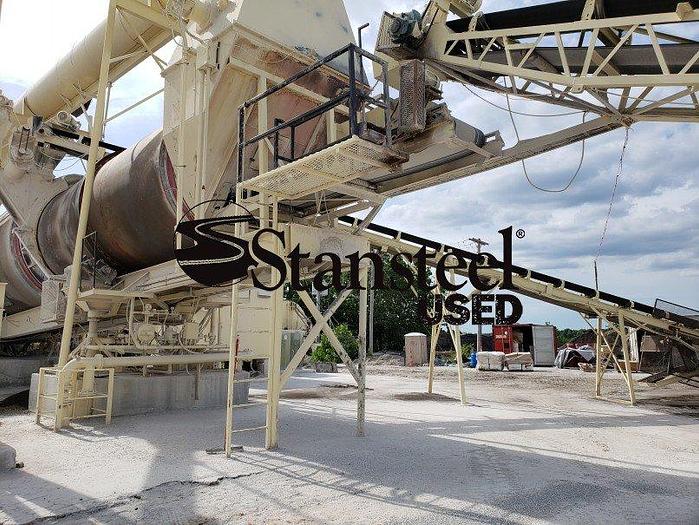

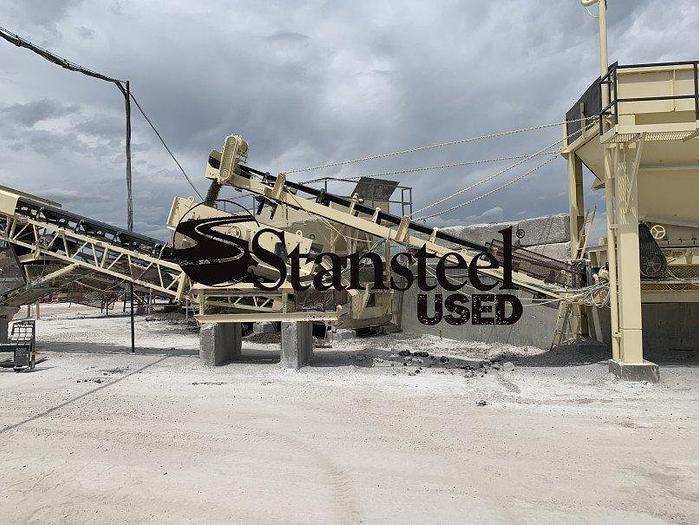

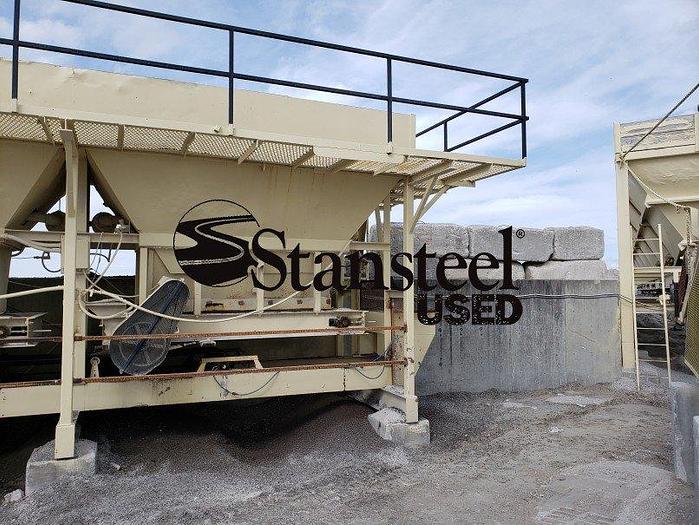

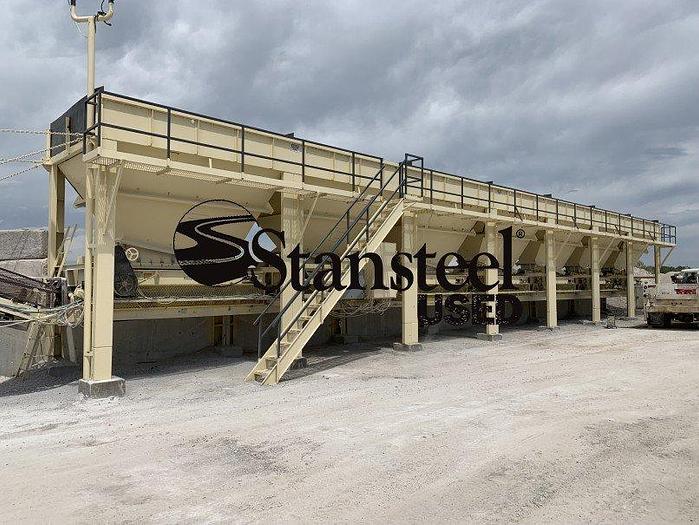

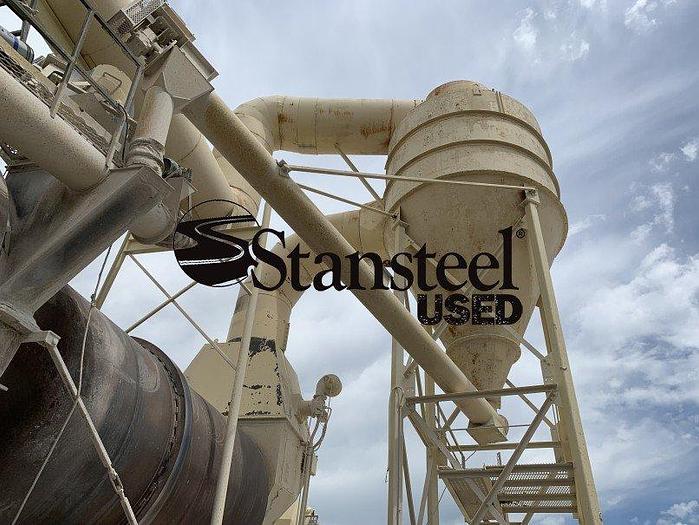

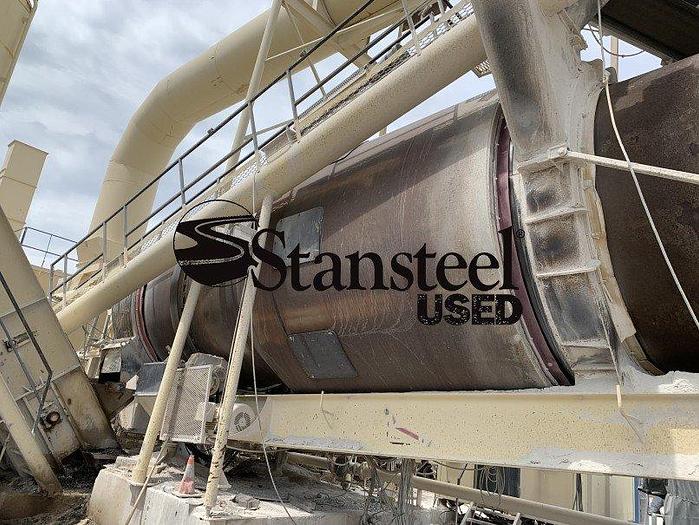

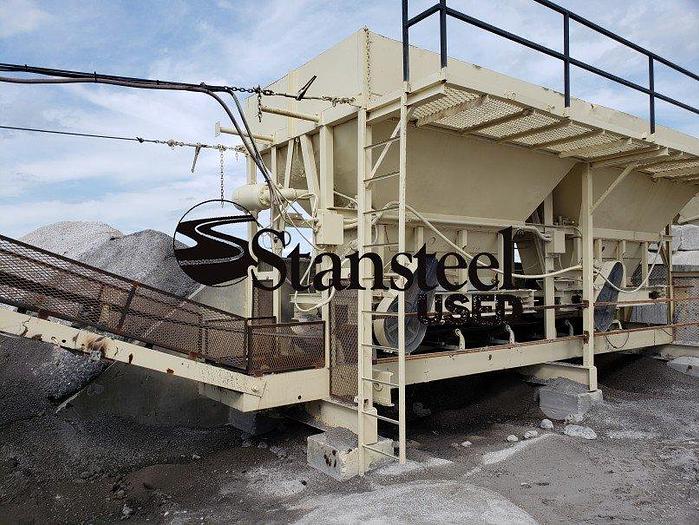

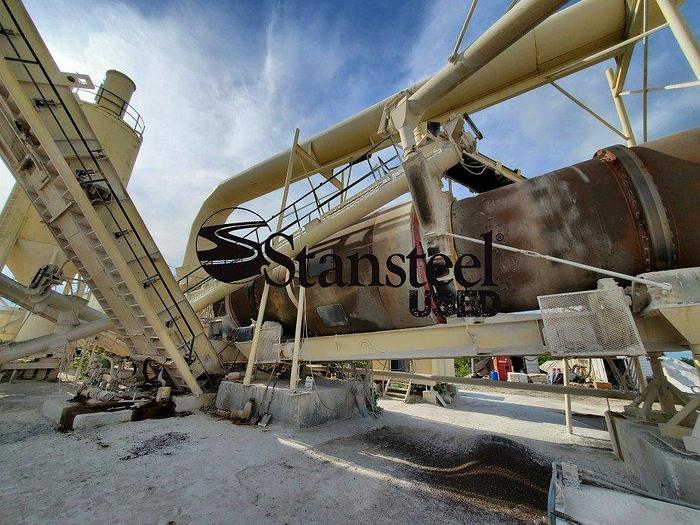

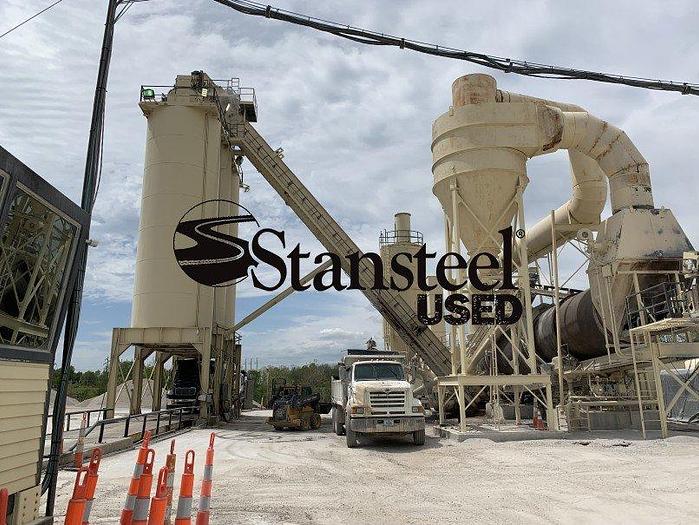

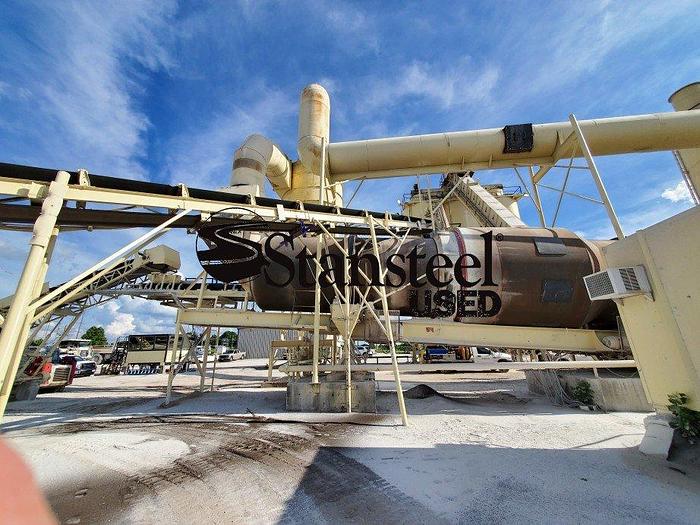

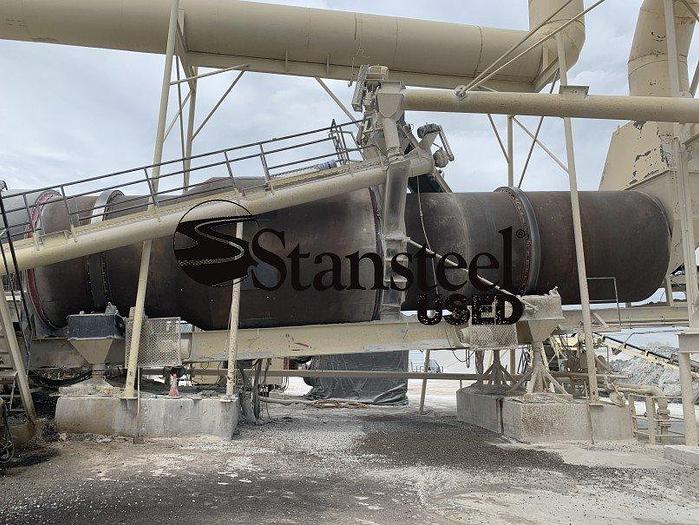

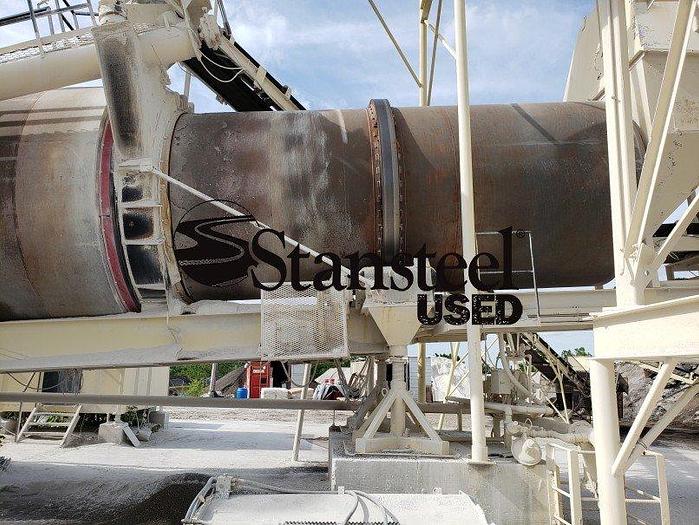

CMI 500TPH Counterflow Drum Plant GTB-5644 Make: CMI Size: Factory Rated @ 500TPH Type: Semi-Portable Counterflow Drum Plant DESCRIPTION: Complete CMI, Semi-Portable, 500 TPH Counterflow Drum Plant: Features of this plant include the following: CMI Seven (7) Bin 10’ x 14’ Stationary Cold Feed System with nominal 30” wide feeders, 5 HP DC drives and a nominal 30” wide integral collecting conveyor with folding head section. This cold feed system is also equipped with easily accessible steps that lead to a full-length walkway along bins. 5’ x 10’ 10HP single deck Virgin Aggregate Scalping Screen. Portable CMI 30” x nominal 50’ long, Virgin Scale Conveyor with receiving trough and belt scale on a single axle suspension. Terex Model #E3-500S, Stationary High Recycle Counterflow Drum. The drum is equipped with a slinger feed conveyor and is Trunnion driven with Four (4) 50 HP motors and Heavy-Duty Dodge reducers. A Hauck, StarJet 750 burner, recycle entry collar, dust injection screw conveyor, and support stands to grade. Vertical Stationary Cyclone Primary Collector with dust returning to recycle entry on drum via an auger. Heavy duty support structure. Portable CMI Model #RA-418P Roto-Aire Baghouse with over 18,000sq ft of cloth is factory rated @ 85,000 ACFM and includes a mounted fan with twin 150 HP drives, bottom mounted dual auger dust removal, and triple axle suspension. Portable, Self-Erect nominal 500BBL Dust/Lime Silo with Weigh Pod. Air Lock, Load Cells, and Controls included. Top mounted Filter Vent. Tandem axle portability. 60HP Gardner Denver Blower. One (1) CMI Portable 30,000-gallon AC tank with gooseneck mounted CEI Hot Oil Heater and rear mounted AC pump metering skid. One (1) Portable nominal 30,000-gallon AC tank with (3) Top Mounted Agitators. One (1) Portable nominal 20,000-gallon AC tank and One (1) Portable nominal 35,000-gallon AC tank with (3) Top Mounted Agitators. CMI Two (2) Bin 10’ x 14’ Stationary Recycle System with nominal 30” wide feeders, 5 HP DC drives and a nominal 30” wide integral collecting conveyor with folding head section. The recycle bins are equipped with easily accessible ladder that leads to a full-length walkway along bins. Bin Two is equipped with a vibrator. 5’ x 10’ single deck Scalping Screen CMI Stationary Conveyor with a Belt Scale and Gravity Take-Up feeds into the recycle collar. Heavy Duty Truss Frame. Three (3) CMI nominal 210 Ton Silo System includes a main drag slat conveyor, bintop transfer, and above ground steel truck scale. Stationary CMI Control House with heating and air conditioning. Minds Plant Controls was recently installed.
