Description

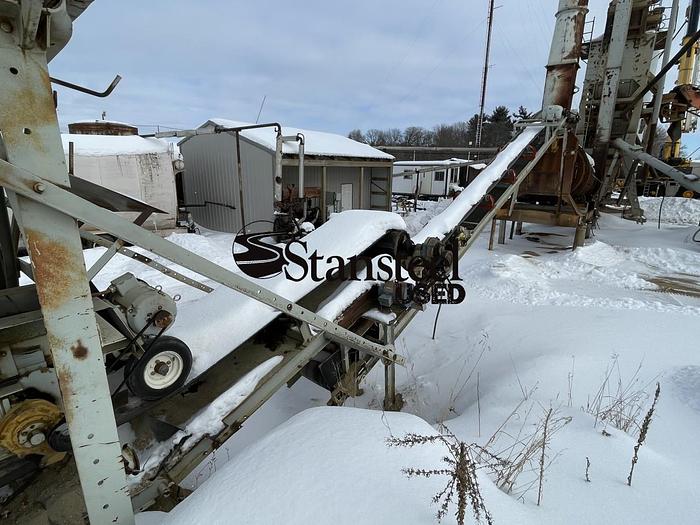

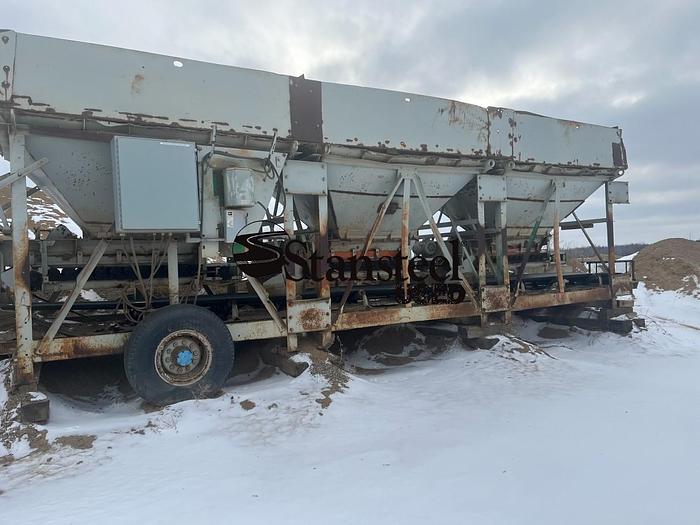

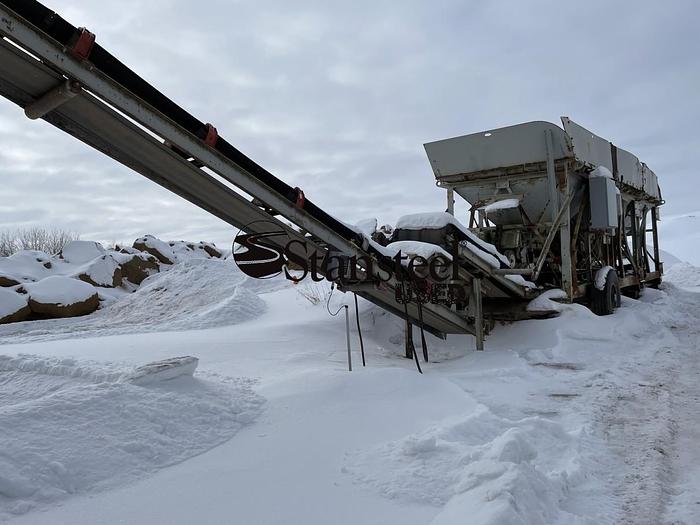

Cold Feeds: (3) Nominal 10’ x 7’ feed bins, 24” belt feeders with 3 HP drive packages, integral 30” collecting conveyor with 5 HP drive. 30” x 30’ aggregate feed conveyor transfers the material to the dryer

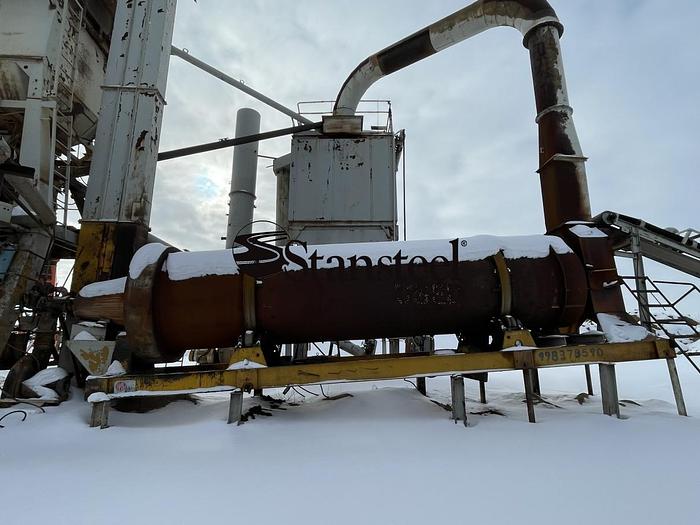

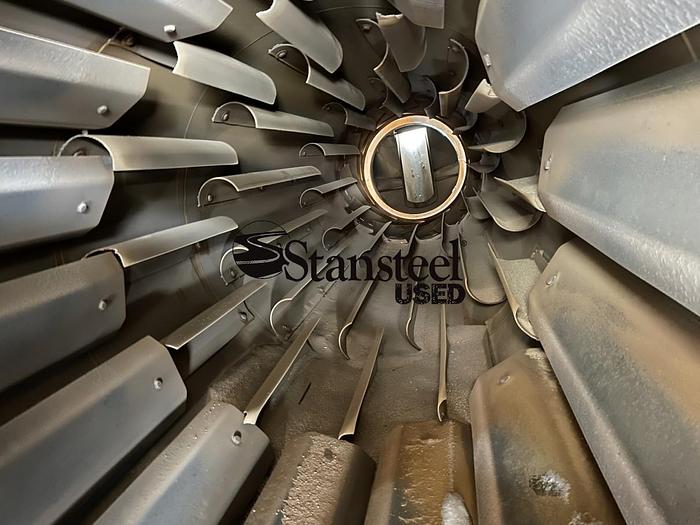

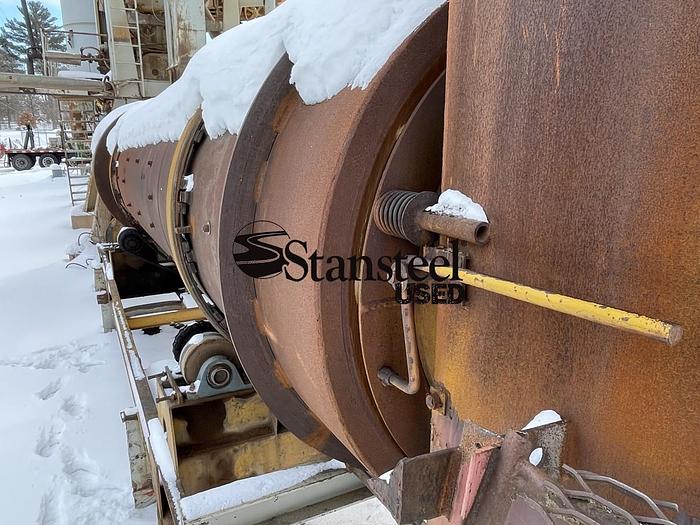

Dryer Counterflow Aggregate Dryer with a 72” dia x 24’ long shell. Heavy duty trunnion drive utilizing (2) 25 HP Drive Package. Gravity feed type inlet chute.

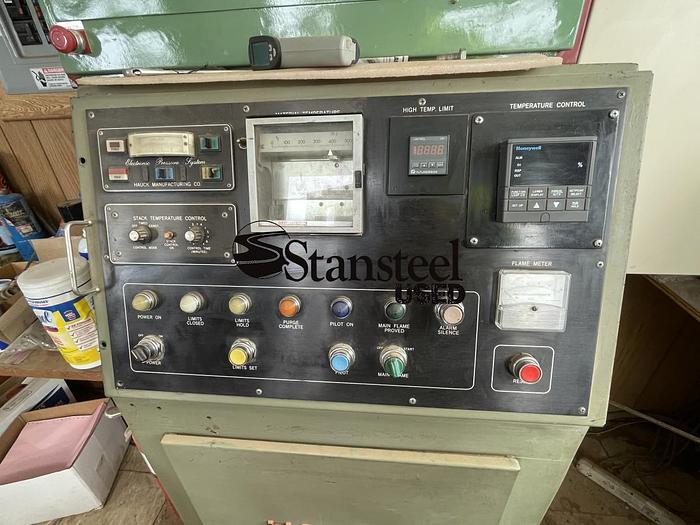

Burner: 40 MBTU Genco FP-40 Burner. Currently fired on heavy fuel.

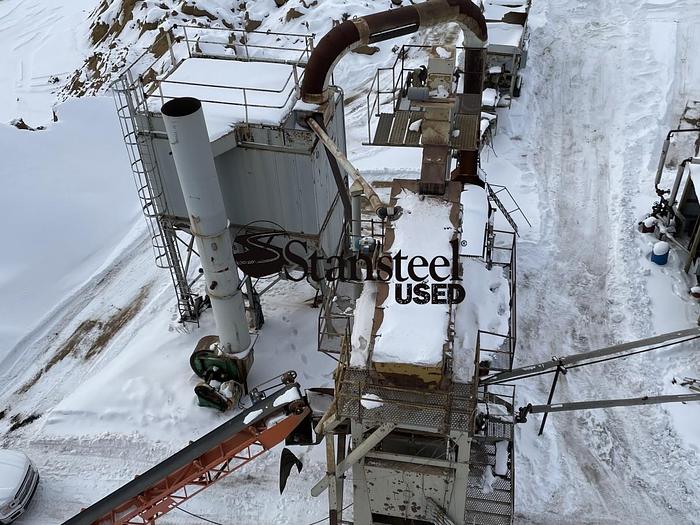

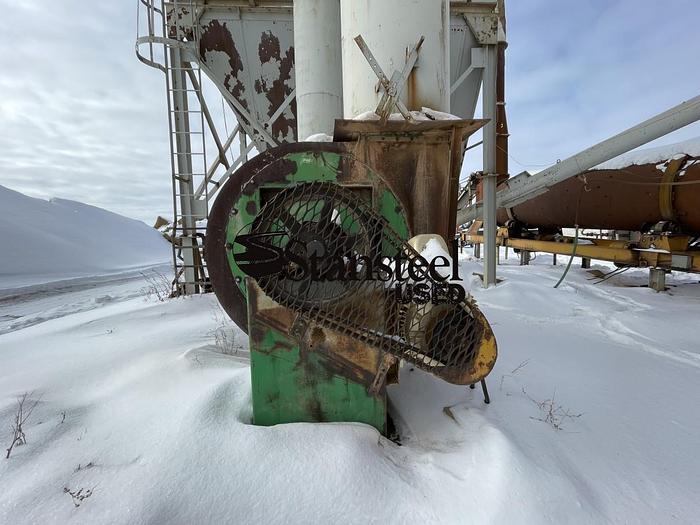

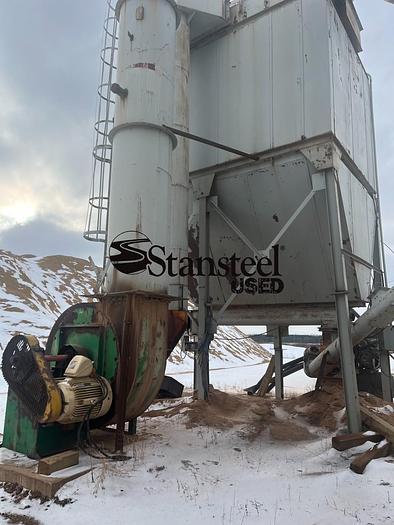

Baghouse: Stationary Pulse Jet style baghouse, 420 4 5/16” dia x 10’ bags, 4,520 square feet of cloth, rated @ a nominal 25,000 ACFM. Paddle wheel style fan with 75 HP drive, remote controlled exhaust damper, discharge auger to bucket elevator.

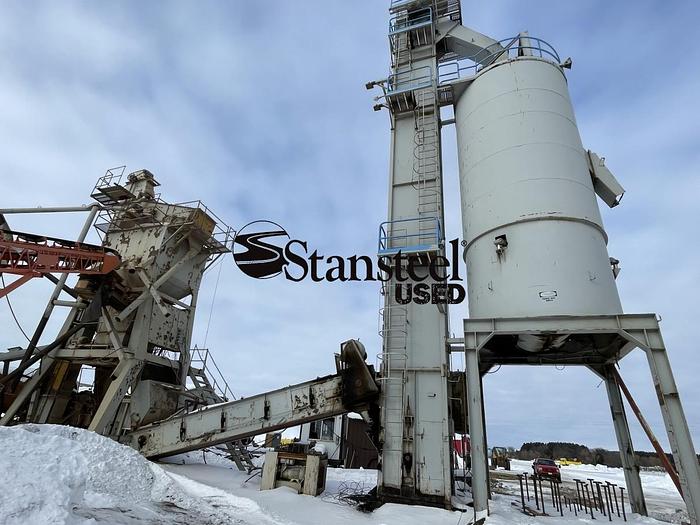

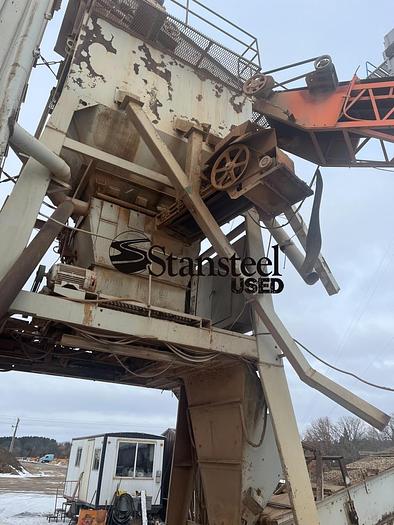

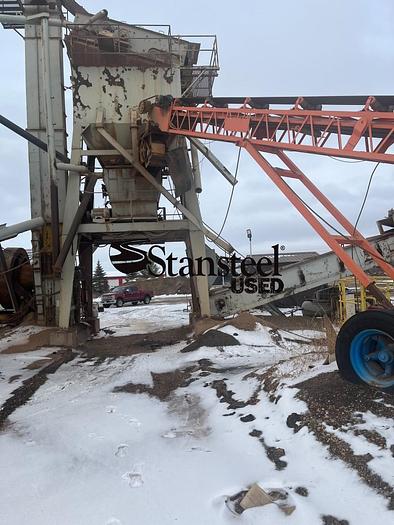

Batch Tower: H&B #2,500 batch tower and bucket elevator.

4) hot bins, newer 4’ x 16’ screen deck, All legs, walkways, and platforms included.

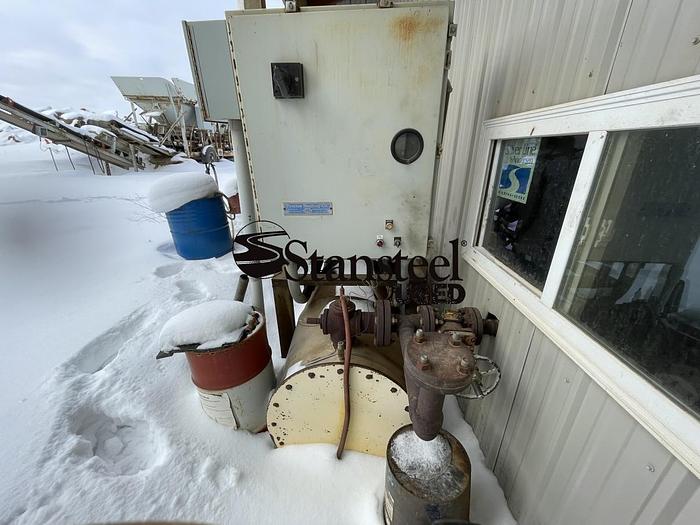

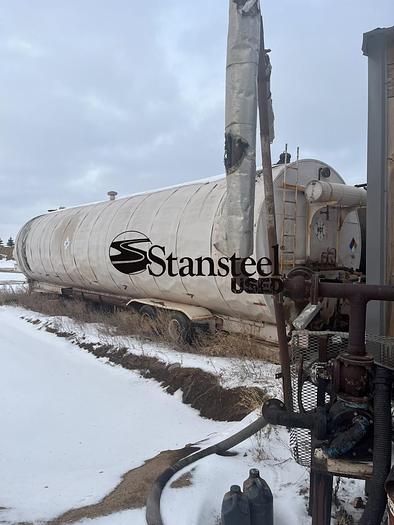

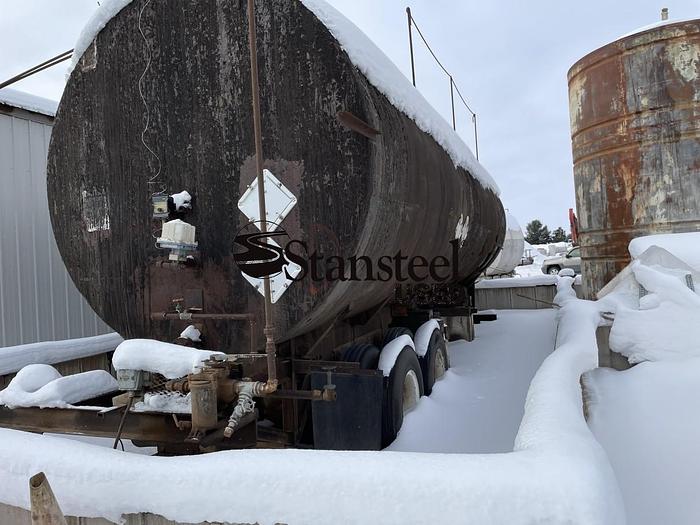

Liquid Storage: (1) portable 12,000 burner fuel tank with electric pre-heater, (1) portable 30,000 gallon coiled AC storage tank, Hot Oil Heater, 2” plant supply pump.

Recycle System: (1) nominal 10’ x 7’ recycle bin, 24” belt feeder with 3hp AC drive, feed conveyor to weigh hopper

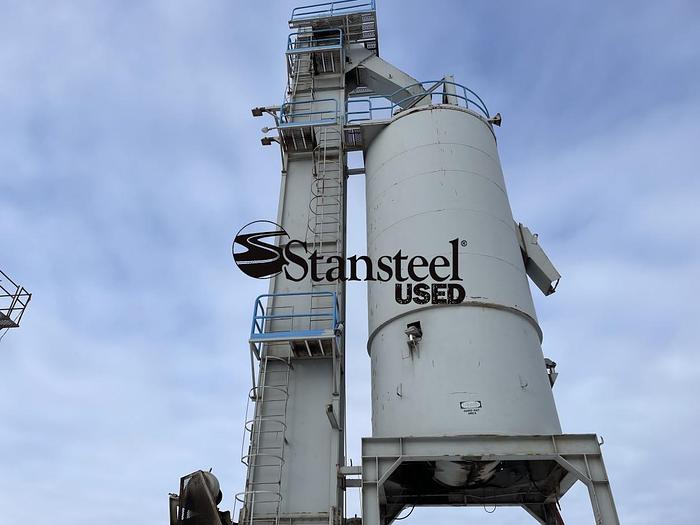

Silo System: One (1) Barber Green 75 ton capacity asphalt storage silo with 5ton weigh batcher, 70’ Barber Green bucket elevator with 50 HP drive, drag slat style transfer conveyor with dual 6” pitch chain. Also included is an underplant roll-out slat conveyor.

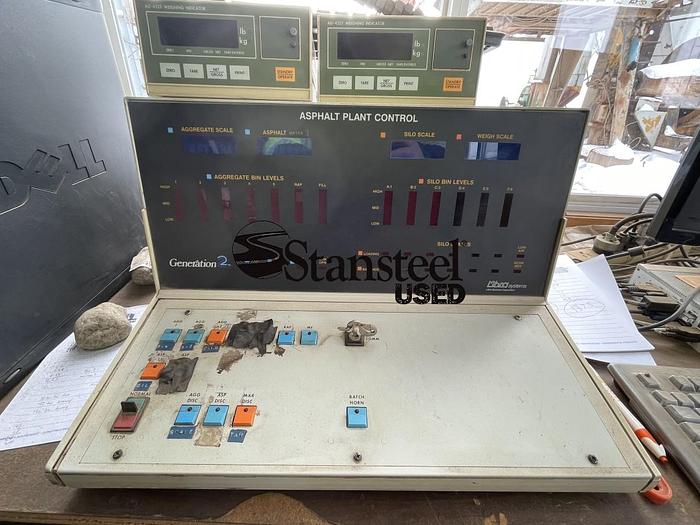

Controls: Libra batch plant controls, portable 8’ x 18’ control house, all breakers and starters.


Specifications

ManufacturerH&B®
Model2,500# Batch Plant
ConditionUsed
Stock NumberGTB-5646
