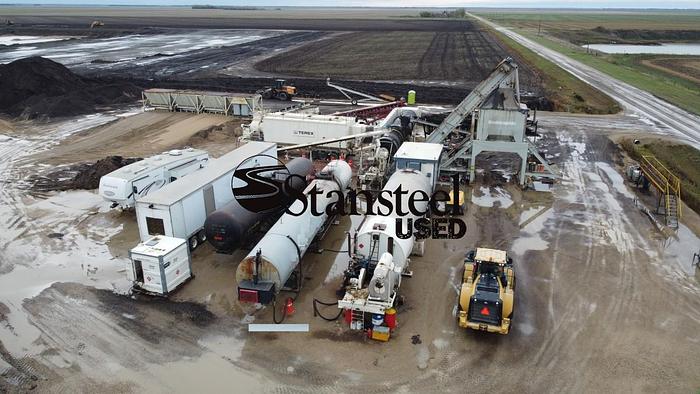

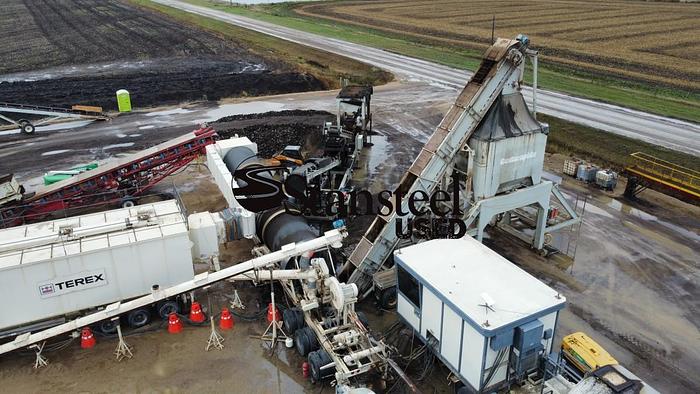

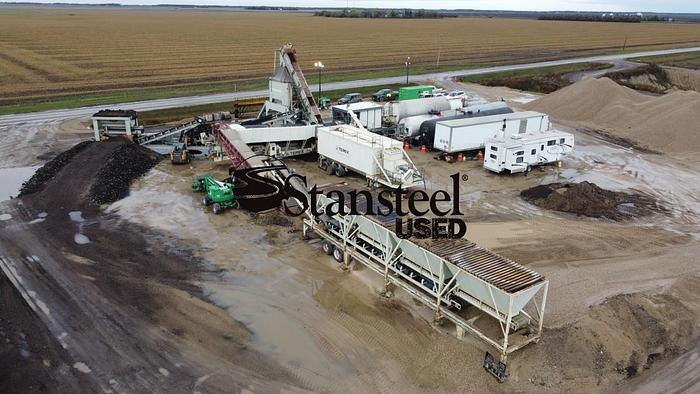

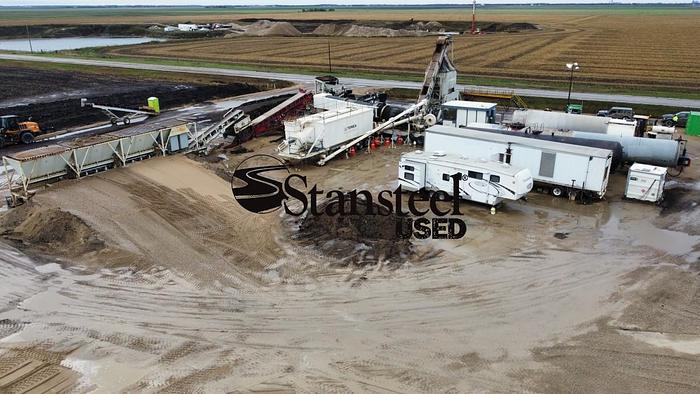

Terex Factory Rated @ 275 TPH Portable Counterflow Drum Plant

Virgin Aggregate System:

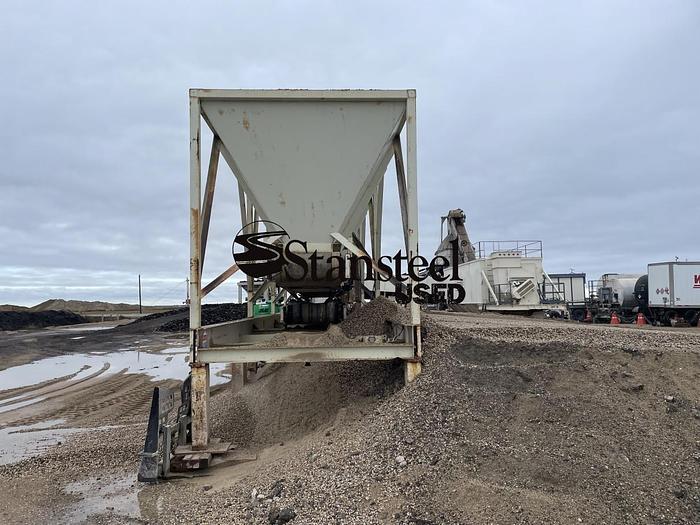

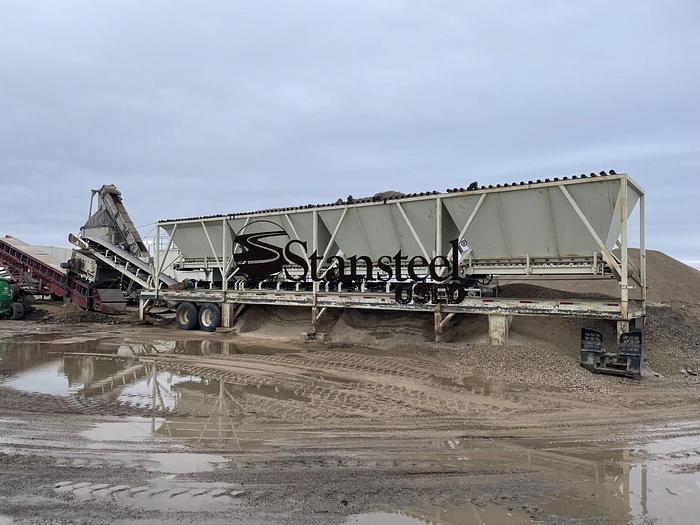

(4) 8’-6” x 14’ Aggregate Feed Bins with 5 HP Drive Packages

75’ x 36” Collector Conveyor with 7.5 HP Drive Package

Tandem Axle Portability

4’ x 8’ single deck scalping screen with 3 HP drive and support stand

Nominal 40’ long x 36” wide virgin feed Scale Conveyor with wind guards

Single Axle Portability

Drum:

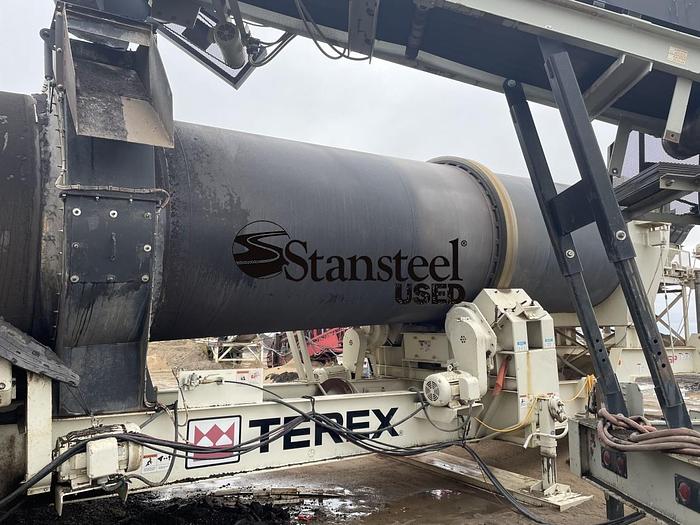

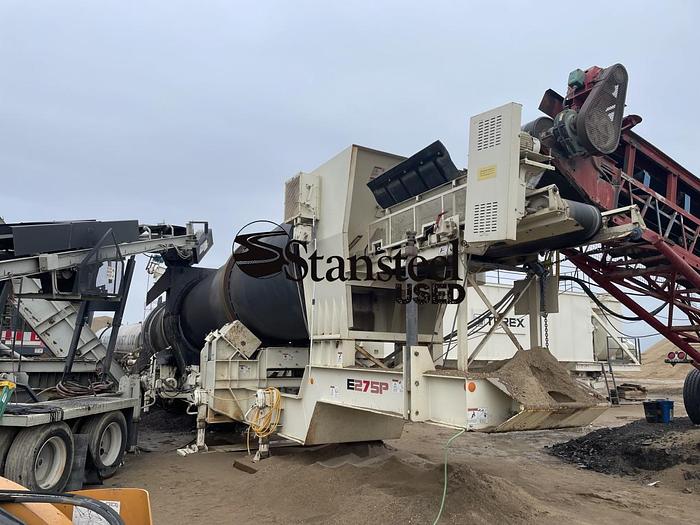

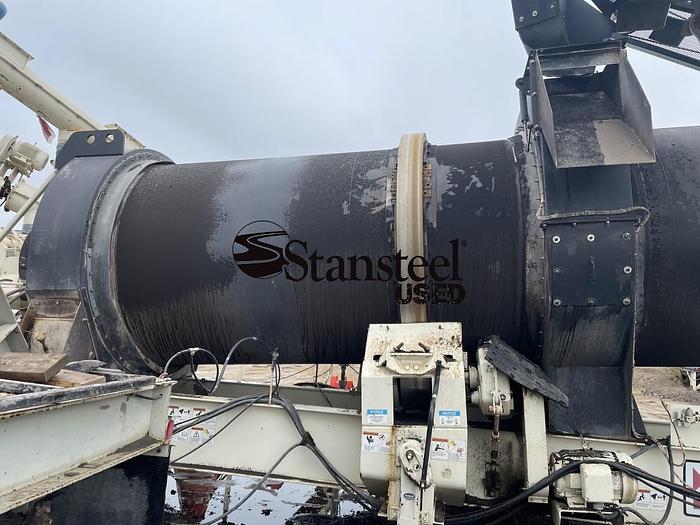

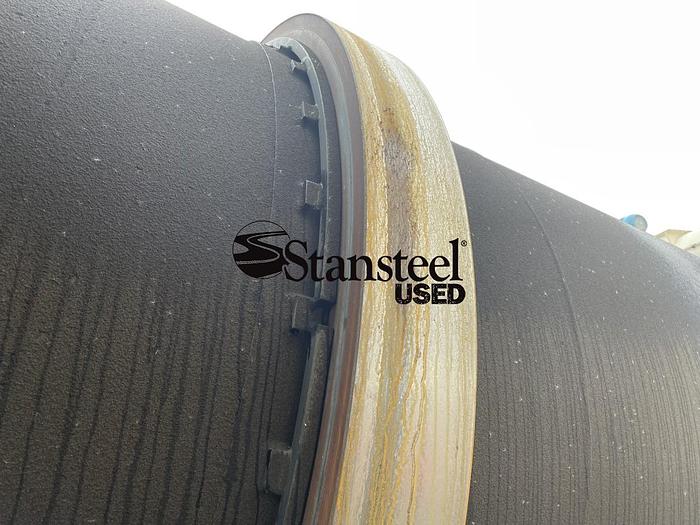

Terex E-275 7’ OD x 38’ long Portable Counterflow Drum Mixer

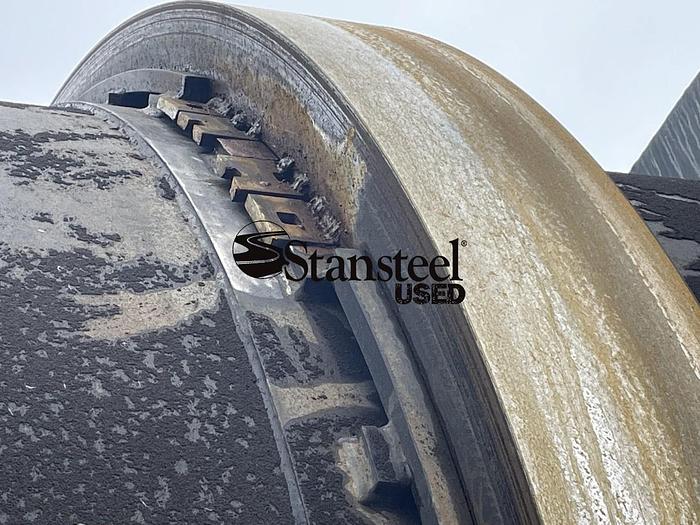

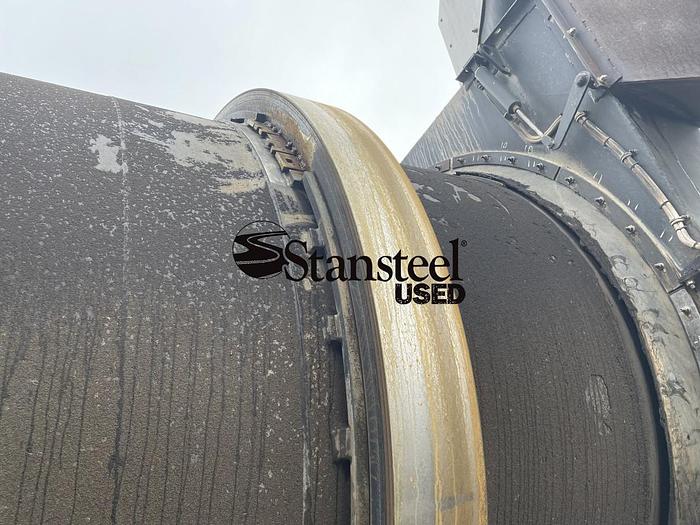

Trunnion Driven with (4) 25 HP drives

Hauck Star Jet 520 Burner currently fired on #2 Fuel Oil

Fuel Pre Heater

Slinger Belt Feed Conveyor

RAP Collar

Full Frame with Triple Axle portability

Dust Collection:

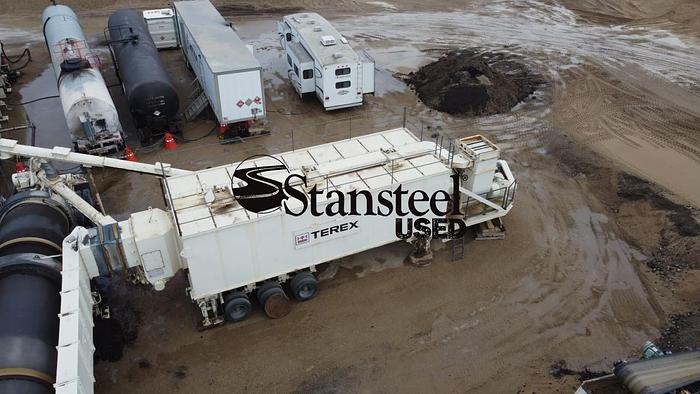

Terex RA3-18P Roto-Air Portable Baghouse with 756 Envelope Style Bags

Auger Style Dust Removal

Exhaust Fan with a single 150 HP drive

All interconnecting duct work / stack

Triple Axle Portability

Dust Metering System:

Meridian 2000 Ft3 Storage Silo Single Axle

2018 EXA Lime Storage Tanker 4100 Ft3 with unloading blower Single Axle

12,500 Ft3 Lime Storage Tanker, Single Axle

Weigh Pod with Load Cells and aeration and Smoot Airlock

Transfer Augers

Liquid Storage System:

Terex Portable Coiled Tank, Split 20K gal AC / 5k Gal Fuel

CEI 1200 Hot Oil Heater

Viking Q34 Unloading Pump mounted to AC Tank

Viking LS225 Jacketed Metering Pump mounted to AC Tank

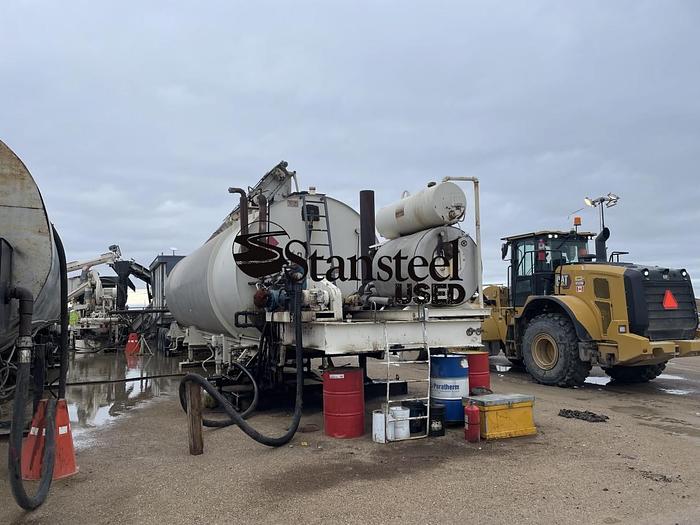

Portable 15K Gal Electrically heated AC tank with Unloading Pump, Triple Axle

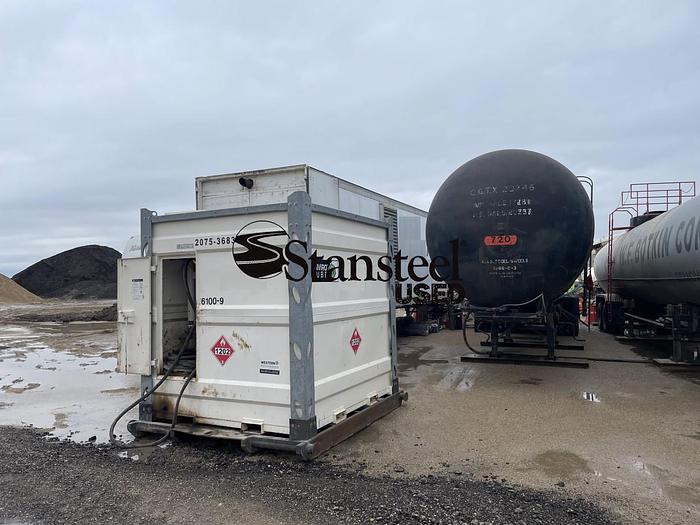

Portable 20K gal Burner Fuel Tanker Tandem axle

Flex Lines and Hoses

Silo System:

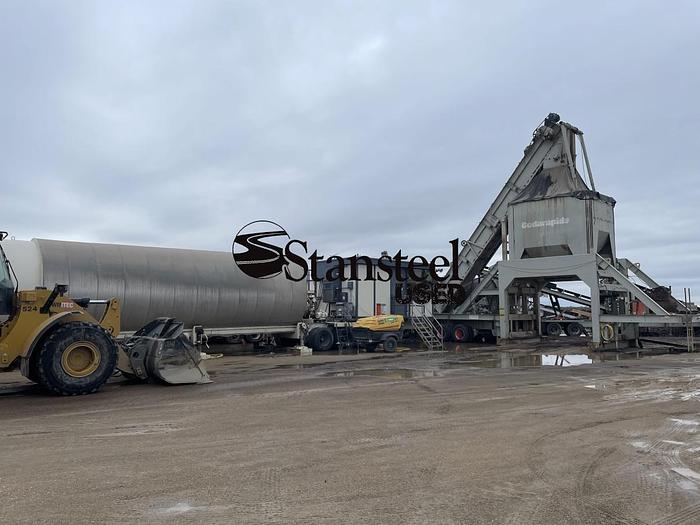

Cedarapids 60-ton Portable Self Erect Bin

36” Wide Drag Slat

50hp Drive

Single 6” Roller Chain

Onboard Air Compressor / Dryer

Triple Axle Portability

Power:

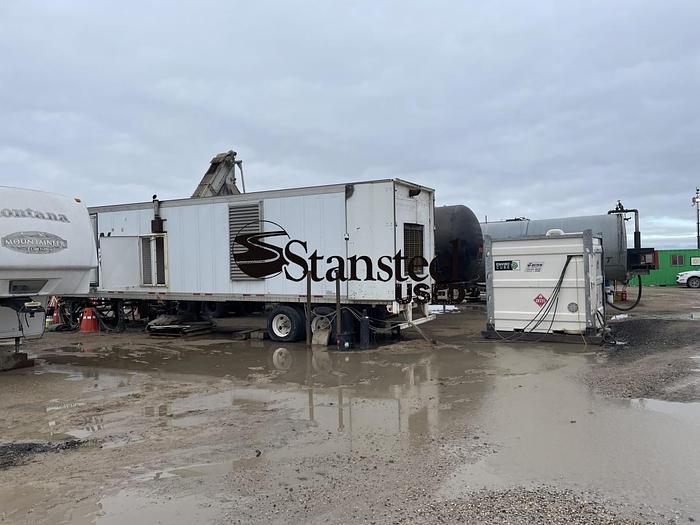

53’ Van Trailer with Workshop

500kw/ 3412 Caterpillar Genset completely rebuilt

175kw Cummins Night Genset

All transfer switches and disconnects

Quick Connect Cabling

Controls:

Terex Portable Control House

Allen-Bradley 800 Amp Motor Control Center

Power Flex 70 VFDs

Terex Impulse II Controls

• Plant will be dismantled and staged for shipping
• Portable Rap System shown in photos is being retained by seller
