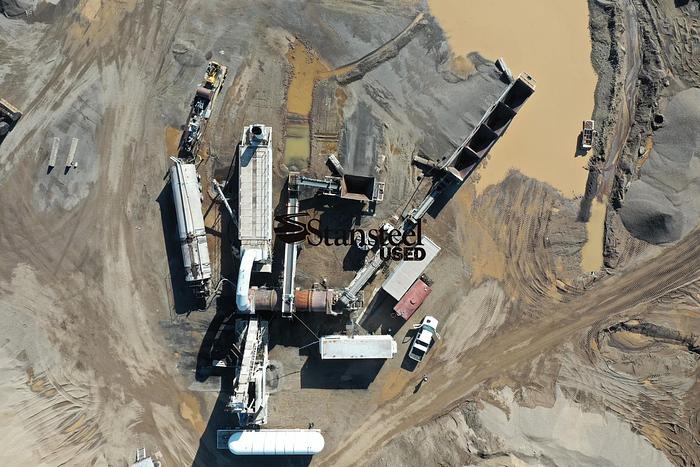

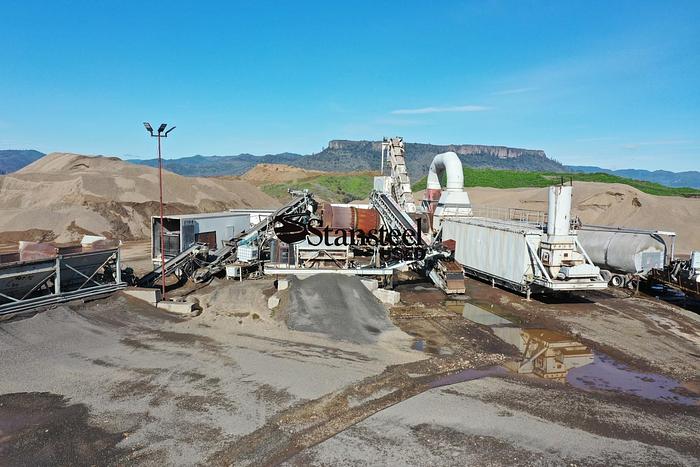

CEDARAPIDS 400TPH Portable Parallel Flow Drum Plant

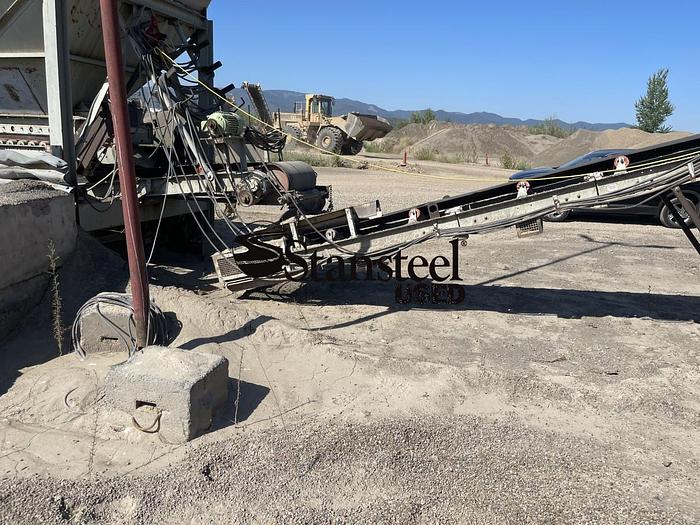

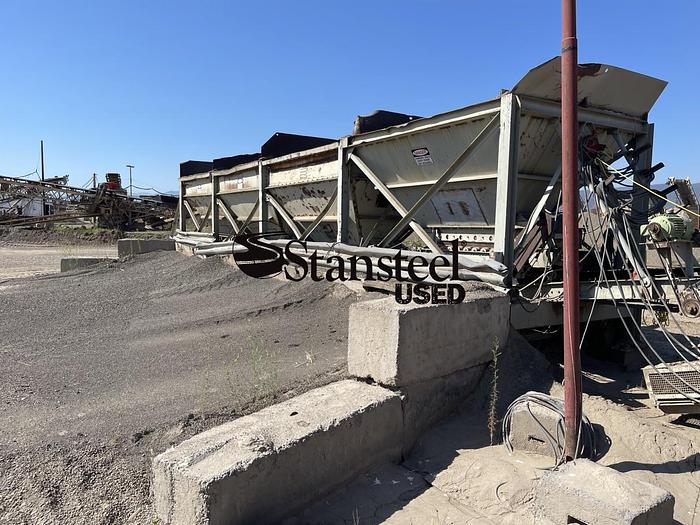

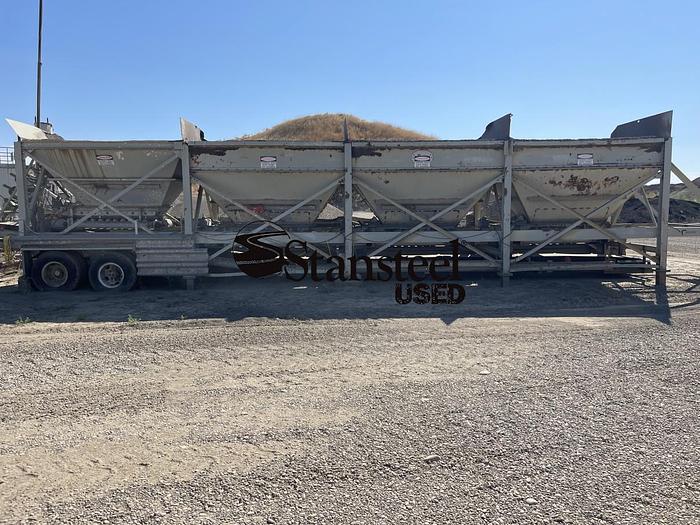

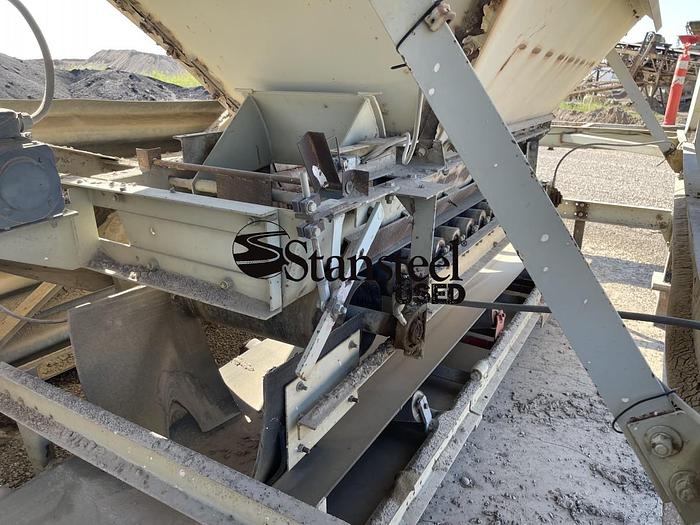

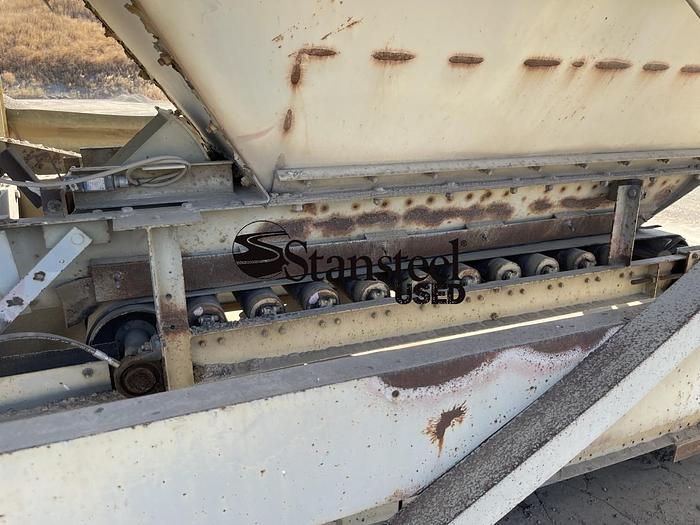

Portable Cedarapids Four (4) Bin 8’ x 12’ Cold Feed System with 24” wide x 6’ long feeder belts, 3 HP DC Drives feed a 7.5 HP 30” wide x nominal 57’ long Integral Folding Collecting Conveyor. Tandem Axle Frame.

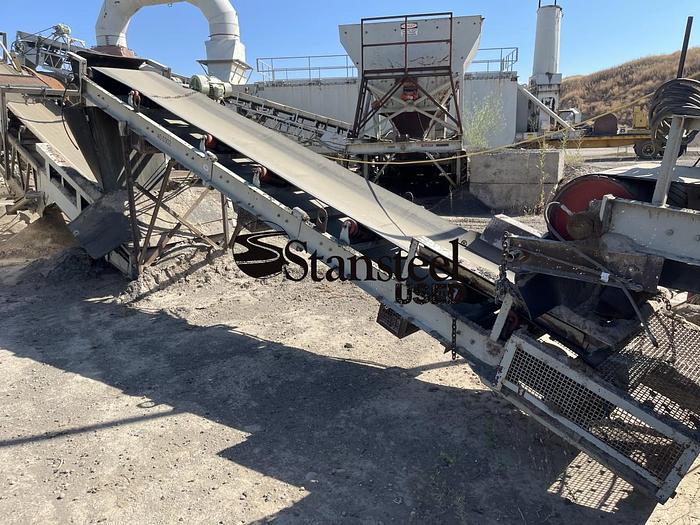

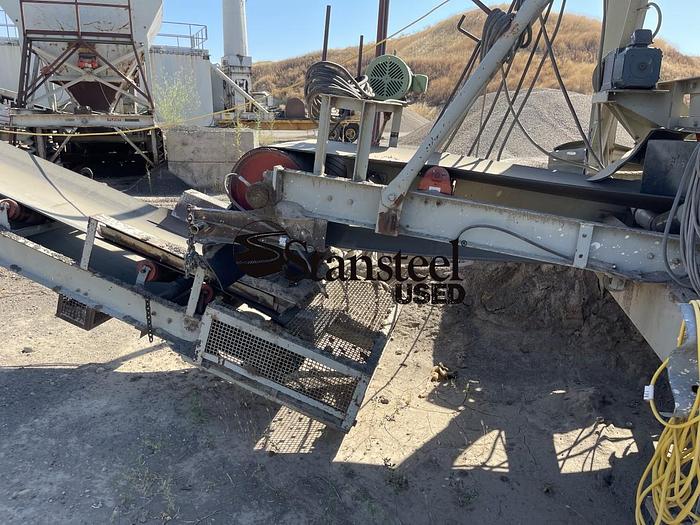

Portable Cedarapids 36” wide x nominal 50’ long Truss frame Belt Scale Conveyor with single axle portability 4’ x 6’ single deck scalping screen.

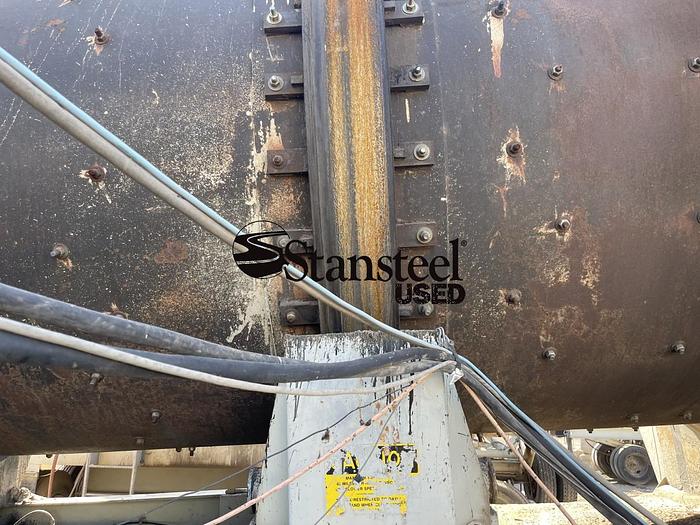

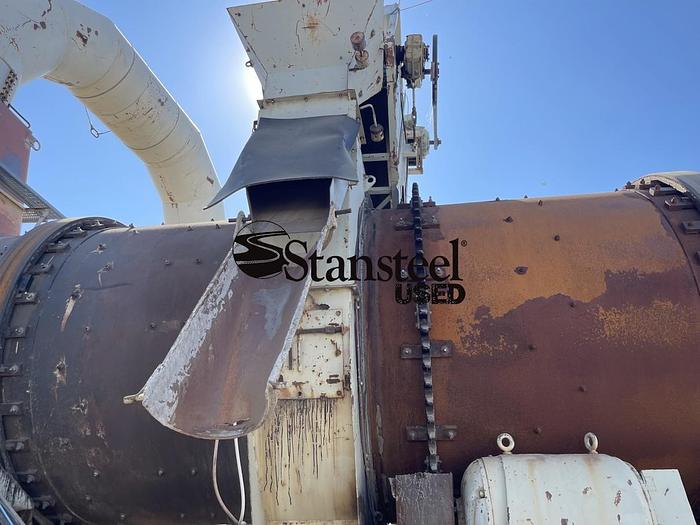

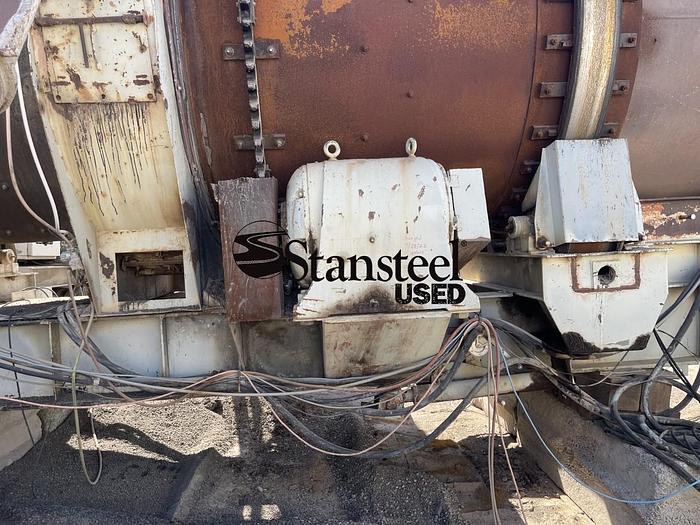

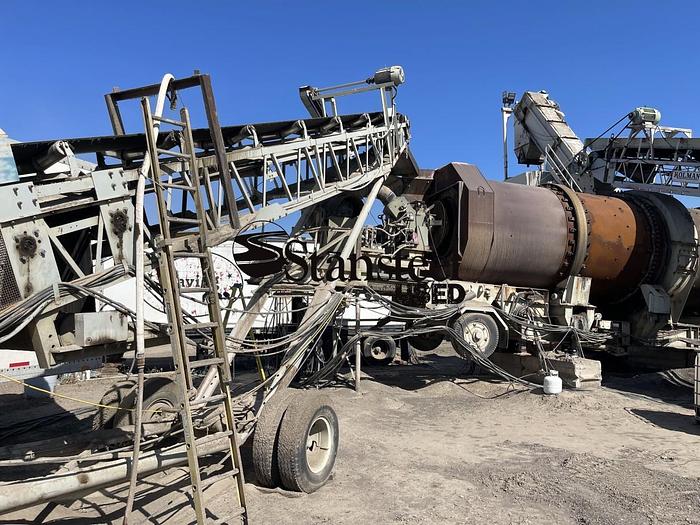

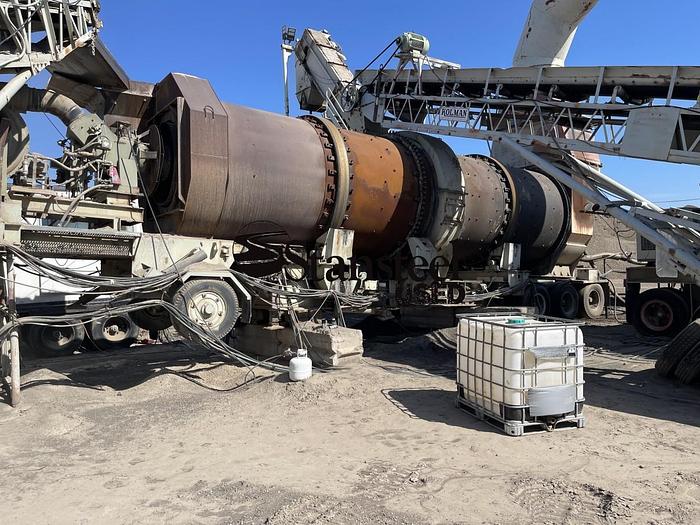

Portable Cedarapids 8’ dia x 34’ long Parallel Flow Drum Mixer with a Gravity Chute Feeder, RAP Entry Collar, 125 HP Cradle Chain Drive. Hauck StarJet 580 Burner, currently running on propane. Triple axle portability.

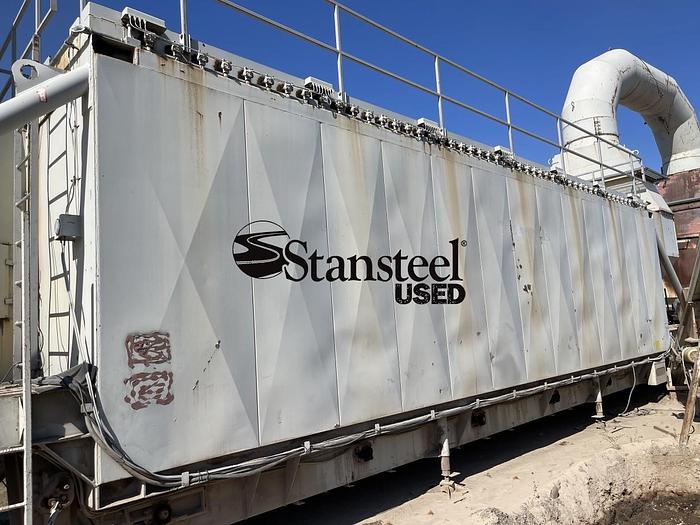

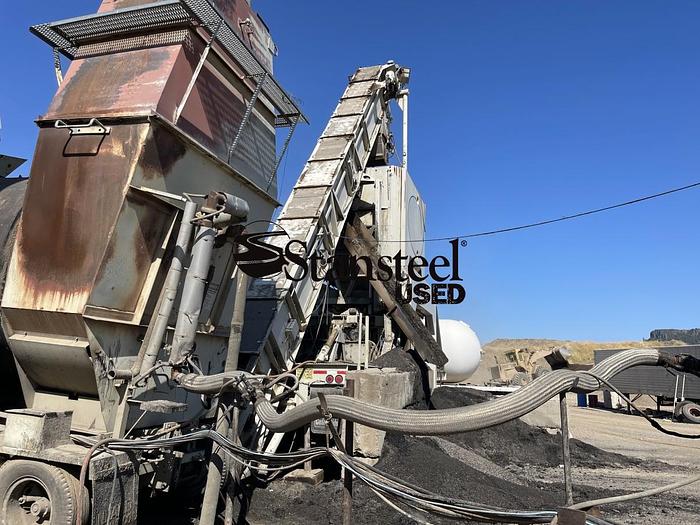

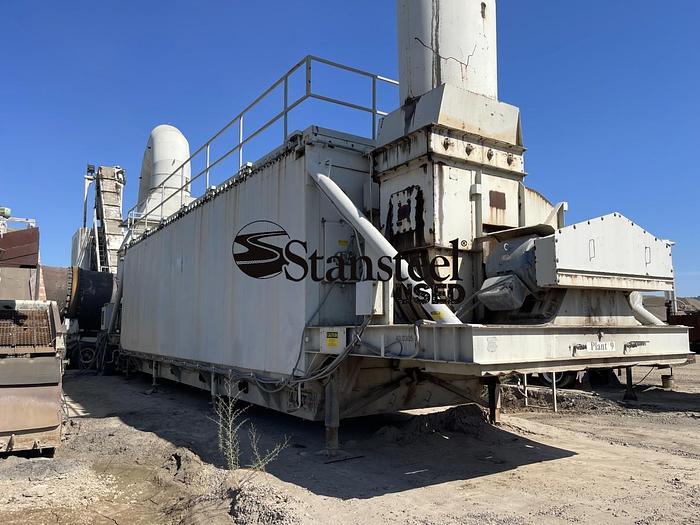

Portable Cedarapids Model # 11060-13 Pulsejet Style Baghouse contains (728) 6”dia x 10’ long Bags. (2) 100 HP Motors on fan. Drag slat bottom dust discharge to summing screw.

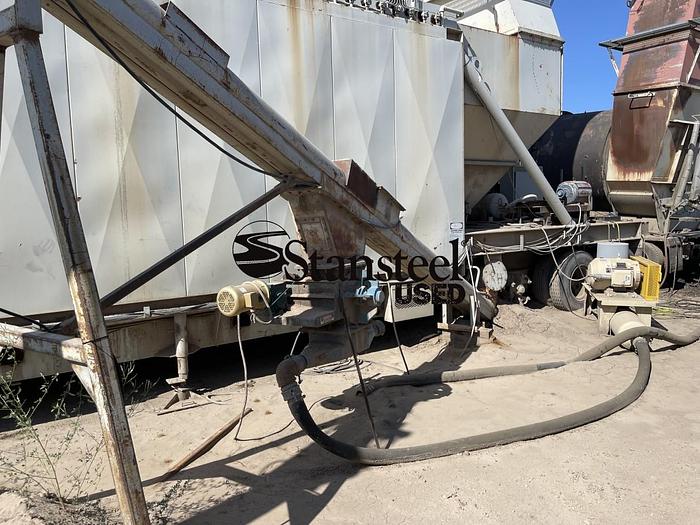

Waste Auger to carry Dust away from the baghouse to be blown into the drum.

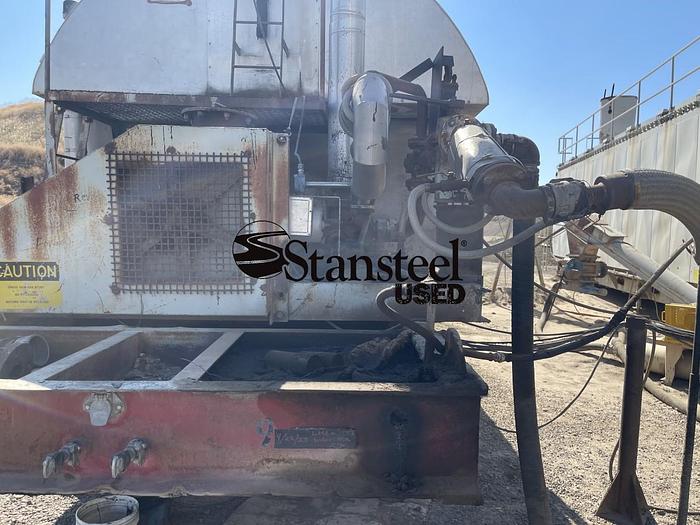

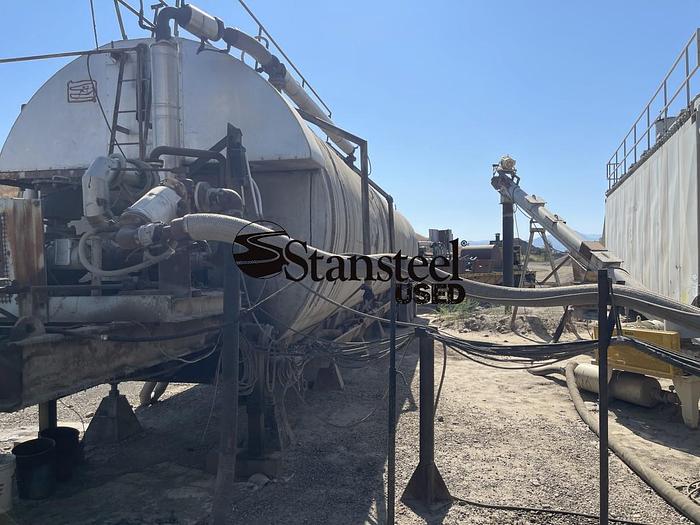

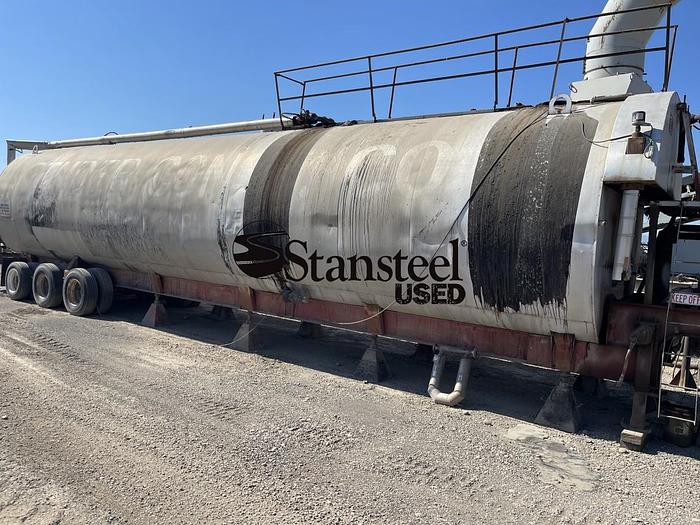

Portable triple axle 30,000 Gallon AC Tank with a Micromotion Materials Pump.

Spomac Portable 9’ x 14’ Single Bin RAP System with a 30” wide x 9’ feeder and a 30” wide x 25’ long collecting conveyor mounted on a single axle frame.

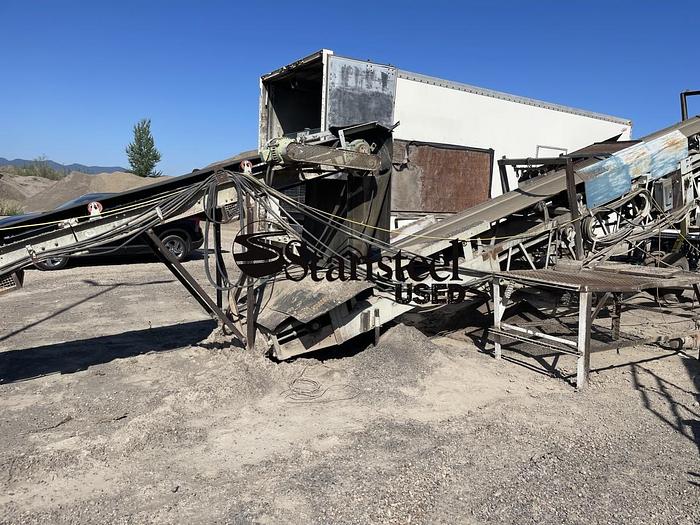

Koberg Recycle single deck screen with a 4’ x 7’ cloth and a Koberg single axle channel frame with 30” wide x 60’ long belt feed conveyor with Belt Scale and Gravity take up.

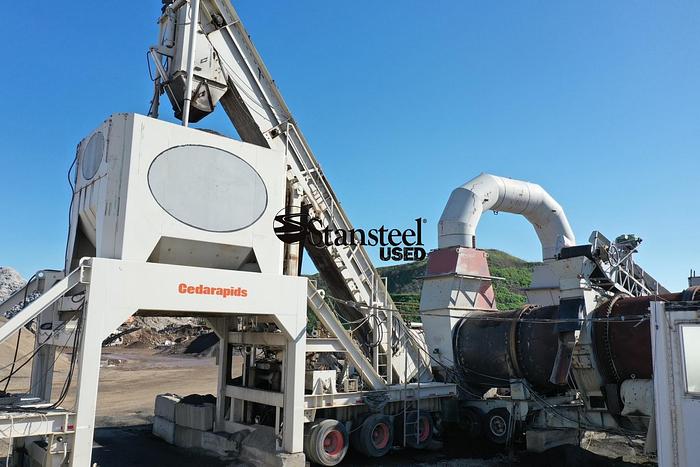

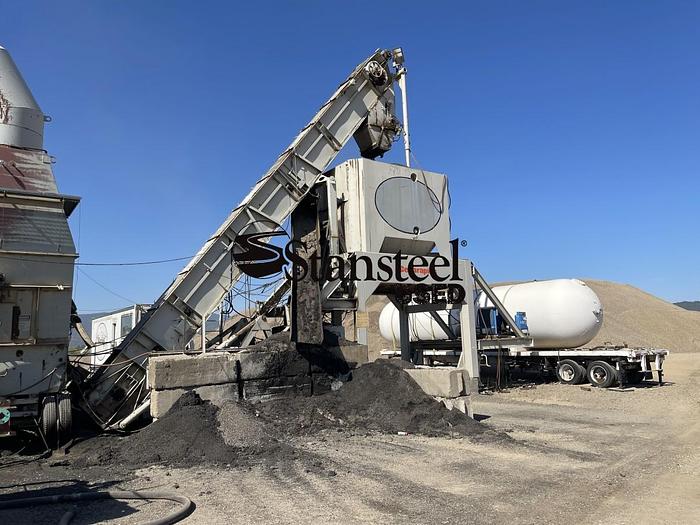

Portable Cederapids portable 60 ton Self Erect Silo with a drag slat having 6” roller chain flat bar 6” tall x 24” wide slats. Oil Floor heat and chrome carbide floor.

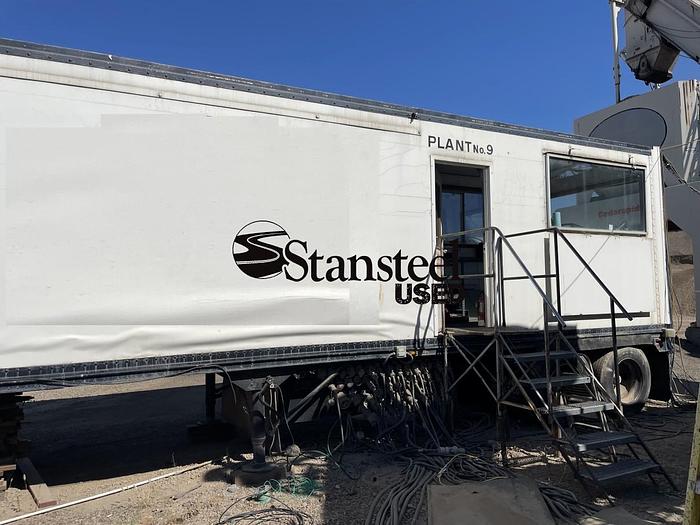

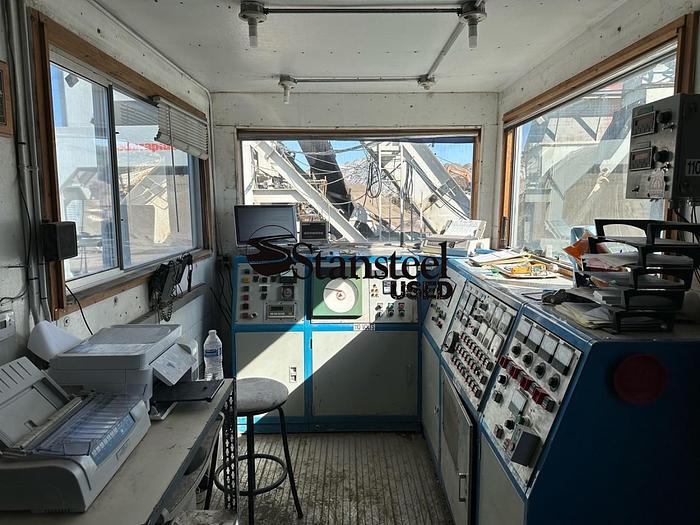

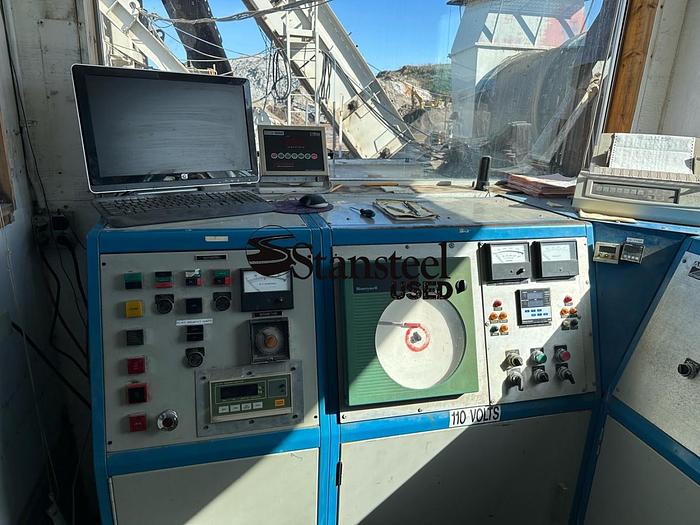

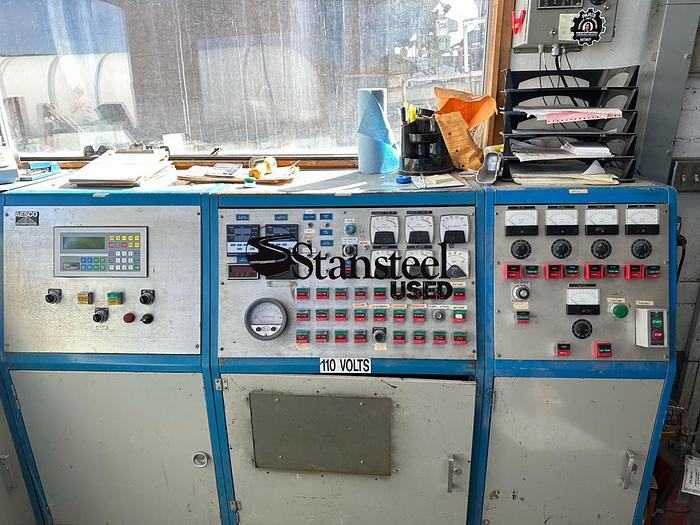

8’-6” wide x 34’ long portable single level Control House with Aescro Controls
